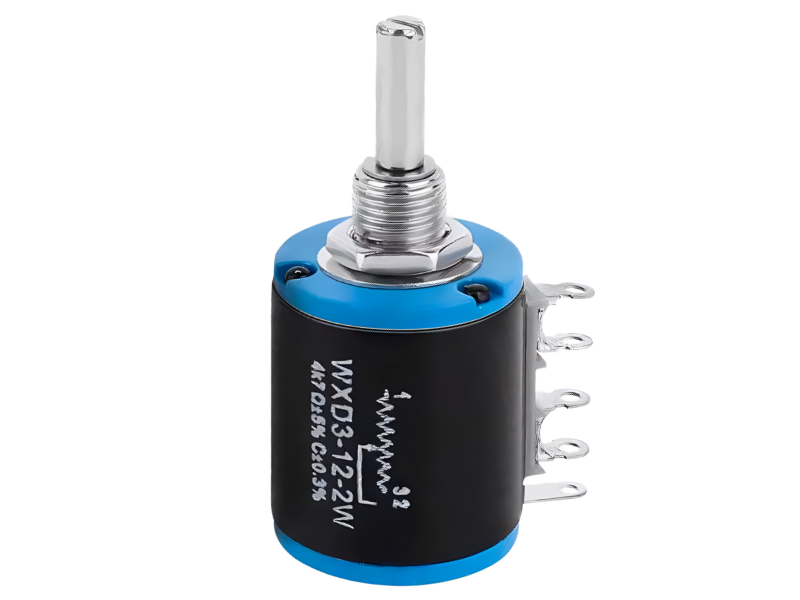

WXD3-12 Precision Multi turn wirewound Potentiometer Sliding Rheostat 5 turn Adjustable Resistor

product name:

WXD3-12 Precision Multi turn wirewound Potentiometer Sliding Rheostat 5 turn Adjustable Resistor

product description:

The WXD3-12 potentiometer is a variable resistor that is usually composed of a resistor and rotation or sliding system, that is, the movement contacts on the resistor to obtain some voltage output. The function of the potential meter is to regulate the voltage (including DC voltage and signal voltage) and current.

WXD3-12 is a precision multi-circle with a power of 2W, (5) wire wounds, and this product is used in telecommunications. Electrician, electronic instruments and equipment, power distribution cabinets, precision adjustment DC or low -frequency voltage, current use

Product Features:

WXD3-12 Precision wire winding machine adopts nickel plating and golden axis shaft sleeve. Pure copper-footed pieces are easy to weld, environmentally friendly flame retardant materials, which have the advantages of high precision, good stability, small temperature coefficient, reliable contact, etc. , Strong power load ability

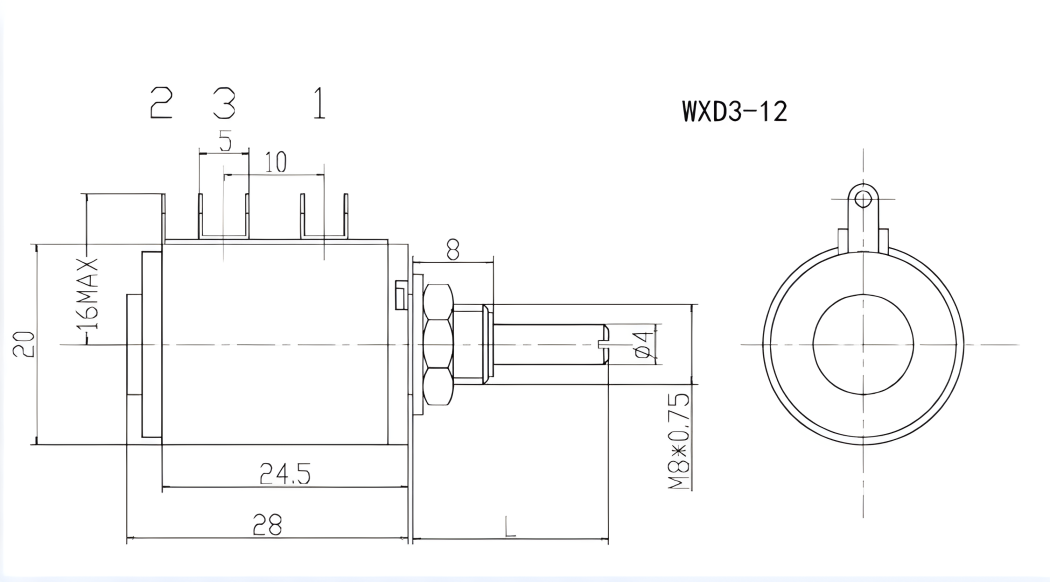

Product size:

Specification parameters:

application area:​

WXD3-12 Multi-Circle Winding Power Power Power Power Power Power Power Power Displayer is used in telecommunications, electrical, electronic instruments, computers and automatic control systems as precision regulating DC or low-frequency AC voltage current.

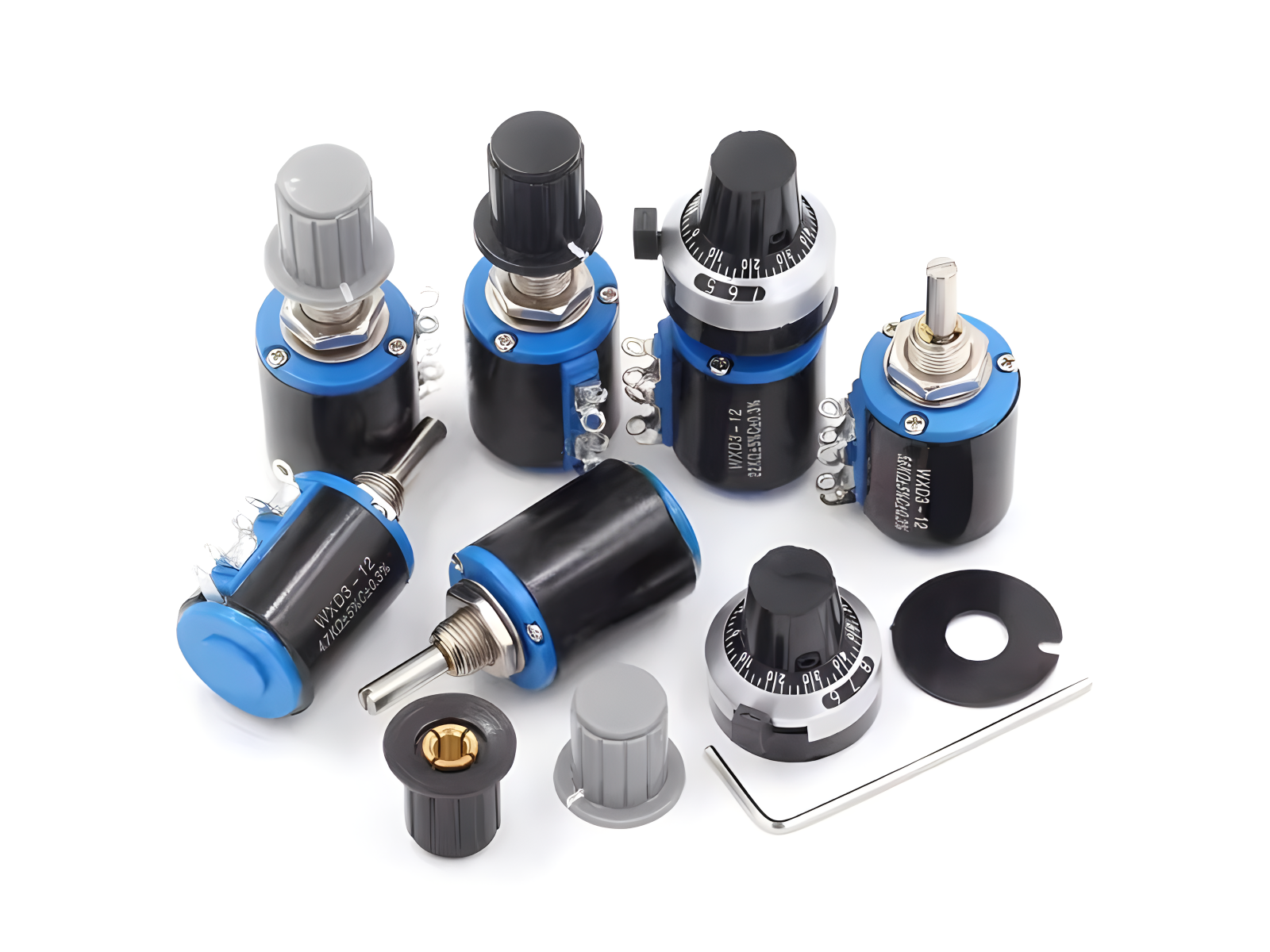

product catalog:

Factory Display:

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!

FAQ:

1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch

4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
