PRODUCT NAME

DEA4-Rail 115/250VAC 3A-30A Rail-Mounted EMI Power Filter

Product Category: Single-Phase High-Performance Power Filter

PRODUCT INTRODUCTION

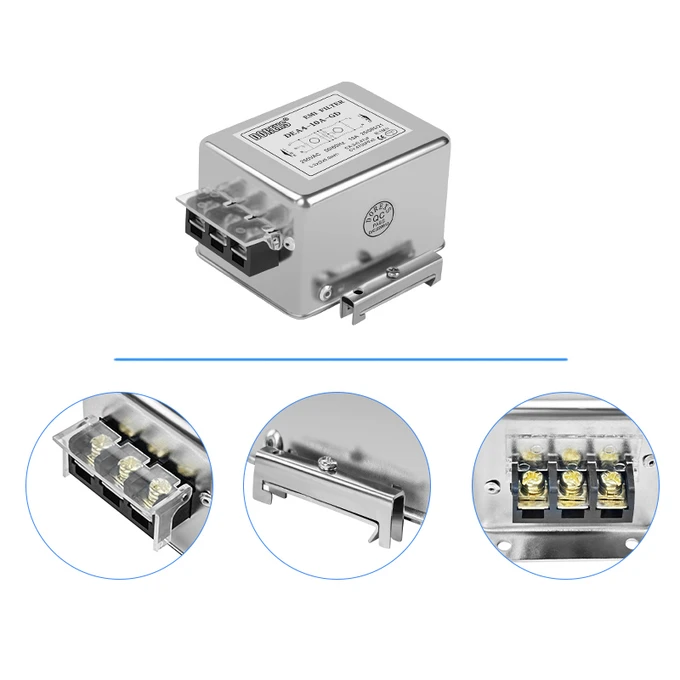

The DEA4-GD rail-mounted EMI power filter adopts a two-stage power filter design, which features stronger suppression performance and provides clearer and more stable electrical signals. It also uses a rail-mounted installation method, allowing easy installation on standard DIN rails commonly used in industrial control panels and electrical enclosures. It is convenient to install.

PRODUCT FEATURES

1. Effective EMI Suppression: The rail-mounted EMI power filter adopts a two-stage filter circuit design with strong attenuation performance, ensuring stable operation in complex industrial environments.
2. Optimized Design: The rail-mounted EMI power filter features a rail-type design, allowing convenient and stable installation on standard DIN rails. Through the optimized compact appearance design, the EMI power filter can maintain effective EMI suppression while reducing space occupation.
3. Customization Options: The rail-mounted EMI power filter offers multiple configurations to adapt to different rated voltages,current levels and application requirements.

4. Rated Voltage: 110VAC-250VAC
5. Rated Current:3A-20A
6. Certifications: cUL，CQC，CE，ROHS
7. Customization is available according to customer requirements, and EMC testing is supported.

TECHNICAL PARAMETERS

1. Product Name: DEA4-GD Rail-Mounted EMI Power Filter
2. Rated Current: 3A-20A
3. Rated Voltage: 115VAC-250VAC
4. Operating Frequency: 50/60Hz
5. Temperature Range: -25°C ~ 85°C
6. Withstand Test Voltage: 1500VDC (Line/Line), 2150VAC (Line/Ground)
7. Flame Retardant Rating: UL 94V-0

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

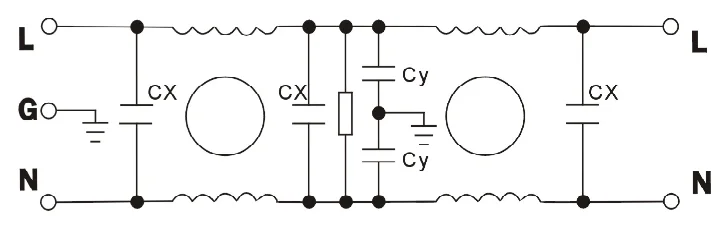

PRODUCT INTERNAL CIRCUIT DIAGRAM

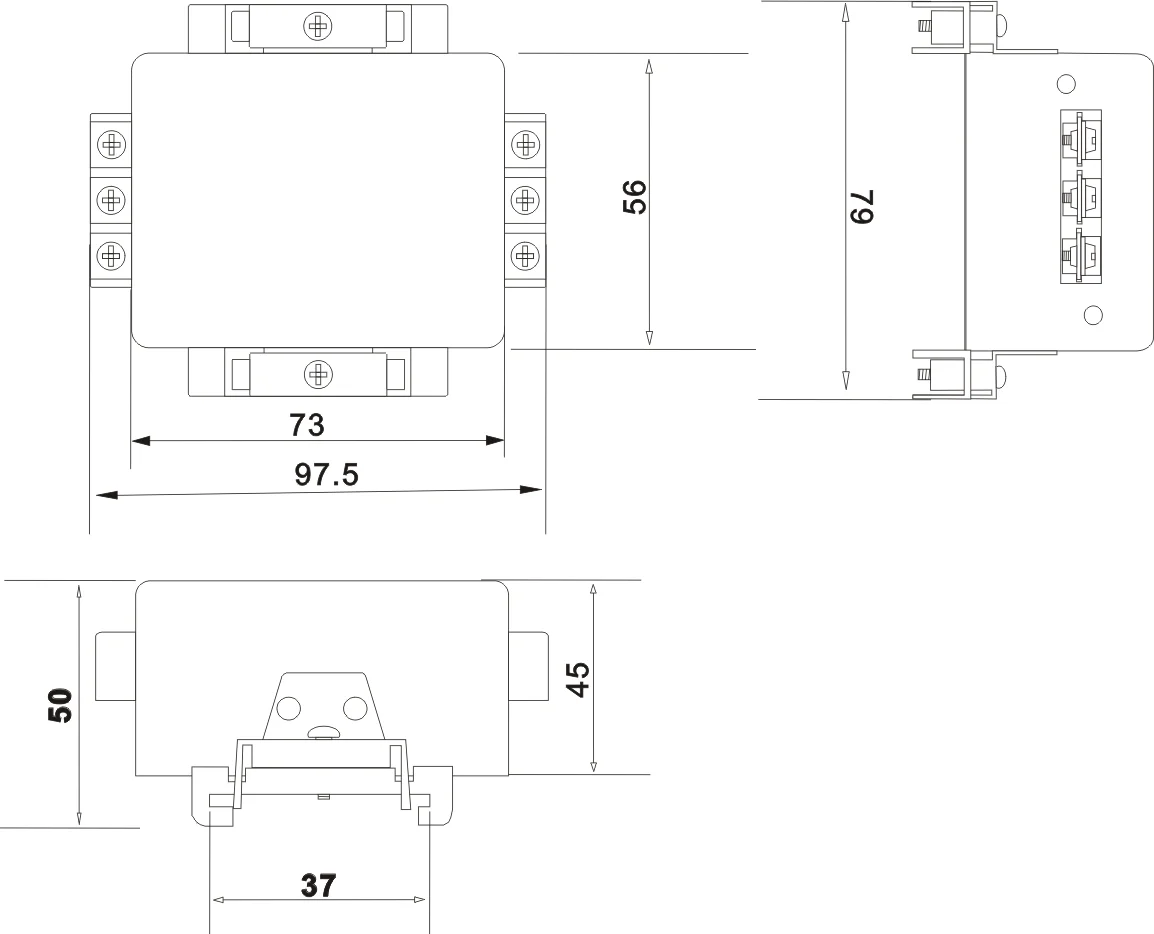

PRODUCT SIZE

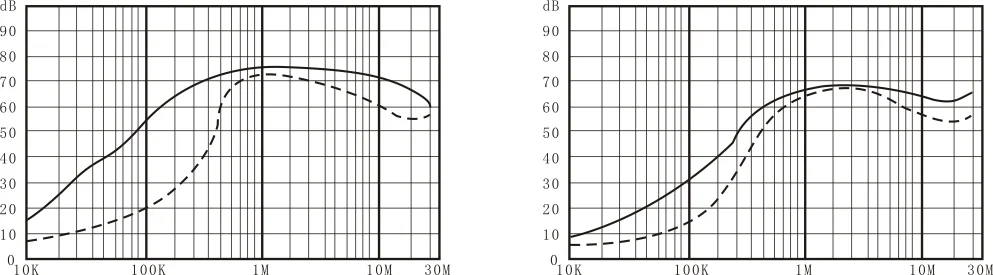

INSERTION LOSS

————Common Mode----------Differential Mode

                           DEA4-6A                                                                              DEA4-10A

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment
