WXD4-23 100ohm Multi Turns Wirewound 101 Potentiometer B100k 3W
Category： wirewound potentiometer
wxd4-23-3w multi-turn wire wound potentiometer, resistance range 100Ω ~ 100KΩ, total resistance error 2%, 5%, shaft diameter 6mm, rated power 3W linear accuracy is divided into 0.2, 0.3, 0.5 and 1%, number of turns 10, shaft diameter: 6mm, shaft length: 25mm, outer diameter: 40mm, resistance material wire wound, sealed IP40. The electrical angle is 3600 10, the nominal power is 3w, and the high working voltage is 200v (DC or AC effective value). The rotation life is 15000. Packing: a box/5.
Product Details
WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer b100k 3W
product name:
WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer b100k 3W 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K
product description:
Product Features:

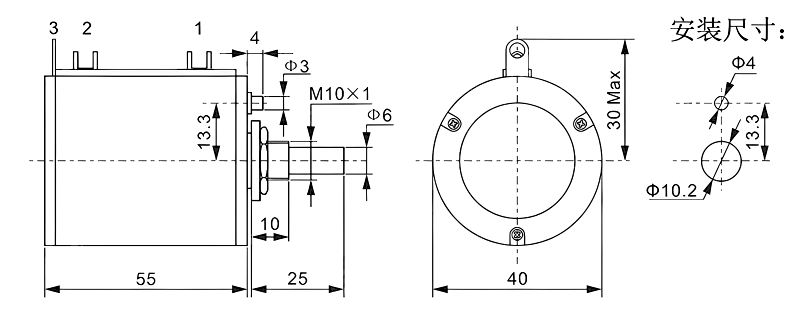

Product size:
Specification parameters:
|
Place of Origin |
China |
|
China |
sichuan |
|
Model Number |
WXD4-23 |
|
Type |
Rotary Potentiometer |
|
D/C |
brand-new |
|
Technology |
Metal Alloy |
|
Resistance |
100~100K |
|
Resistance Tolerance |
±2%~±5% |
|
Rated Power |
3W |
|
Max. Operating Voltage |
500V |
|
Operating Temperature |
55℃~+125℃ |
|
Tolerance |
±10% |
|
Diameter |
22.2mm |
|
Built in Switch |
None |
|
Termination Style |
PC Pin |
|
Shaft Size |
0.250" (6.35mm) |
|
Producing experience |
17 years |
|
Type of Company |
Factory |
|
Brand name |
BONENS |
|
Type of shaft |
Metal shaft |
|
Linearity |
±0.1%~±1% |
|
SHAFT DIAMETER |
6mm |
|
part number |
wxd4-23-3w |
|
OEM |
YES |
|
ODM |
YES |
|
Certificate |
TUV RoHs ISO |
application area:
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
