Rx20 adjustable wirewound resistors 100w high power ceramic resistor

PRODUCT NAME

RX20 High Power Aging Load Corrugated Wire Wound Porcelain Tube Resistor 10w~10000watt

PRODUCT INTRODUCTION

Specifications:

Applications:

simulated loads, discharge equipment, industrial/automation industry

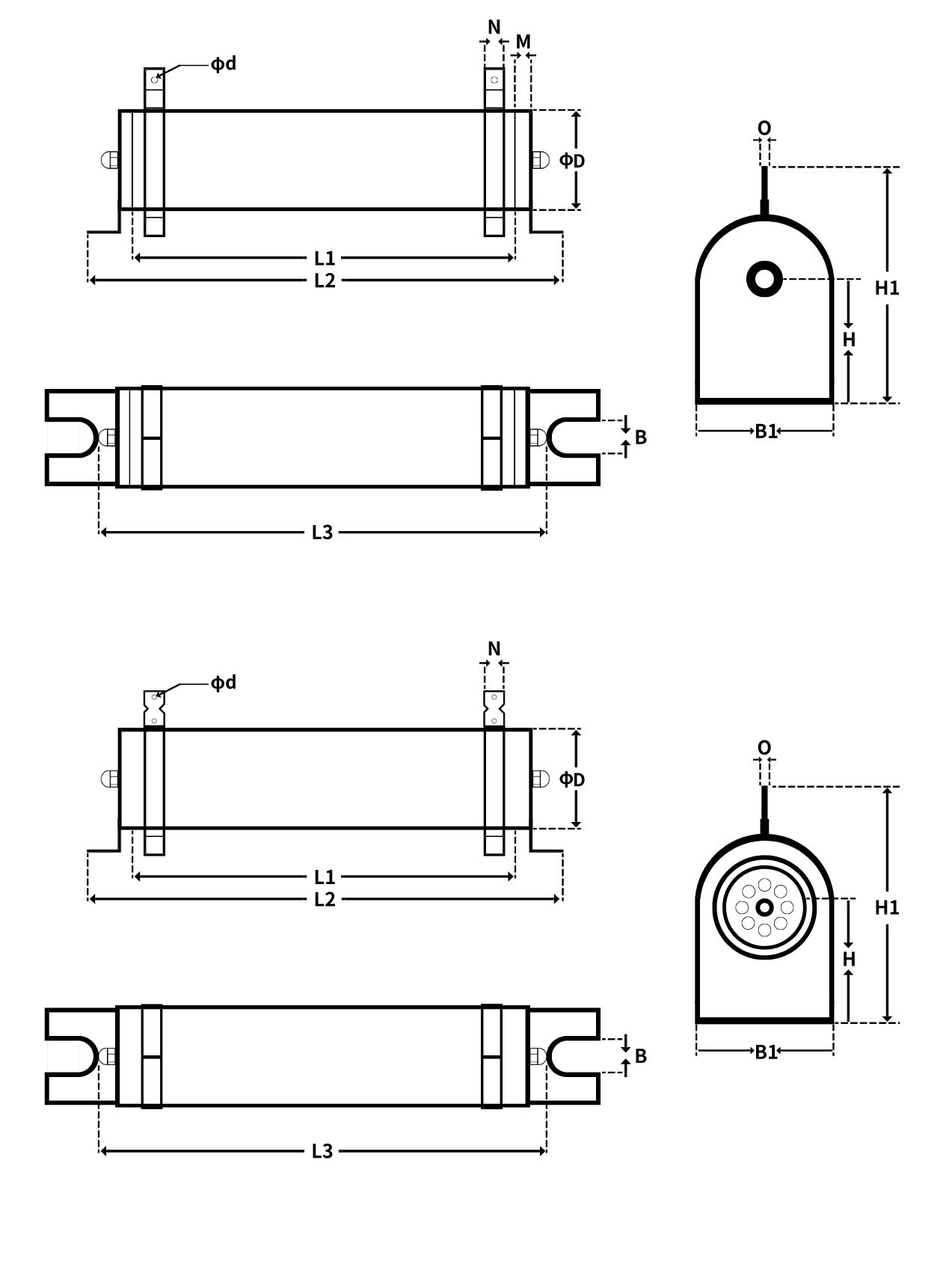

Product size:

Product size chart:

*Note: The size is for reference only, specific size and selection need to be consulted. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 3000.

Finished product identification code:

Remarks: RX20 50W 10Ω ±5%, Model: RX20-50-10RJ; Low inductance, add the letter N to the model number, for example: N RX20-50-10RJ

Resistor usage recommendations

Resistor in the use of circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance so you need to use 2W resistance.

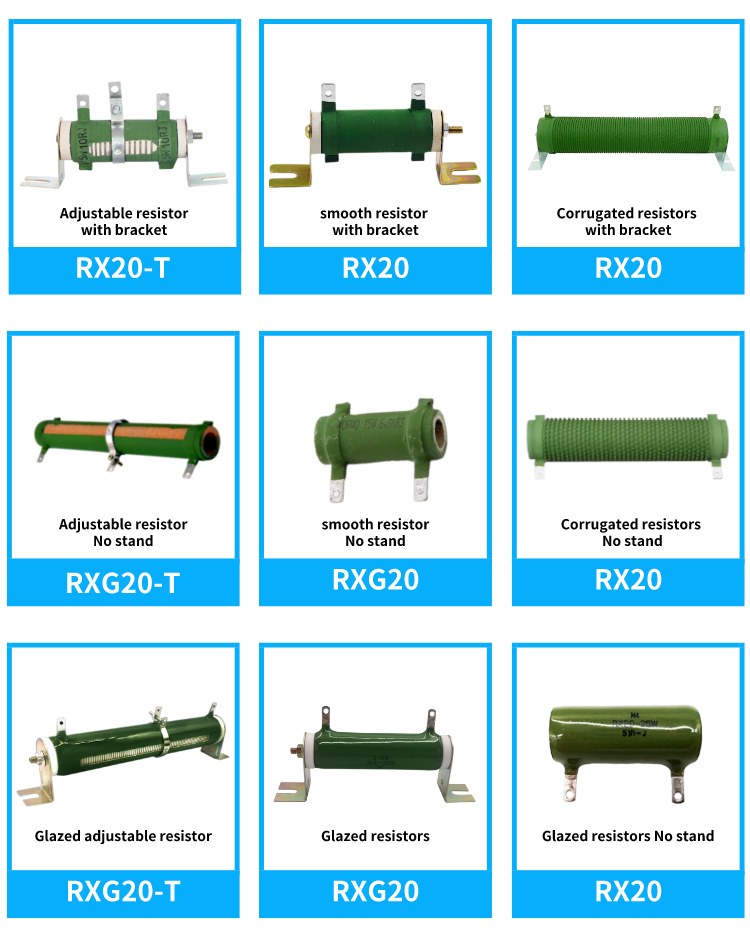

PRODUCT STYLE

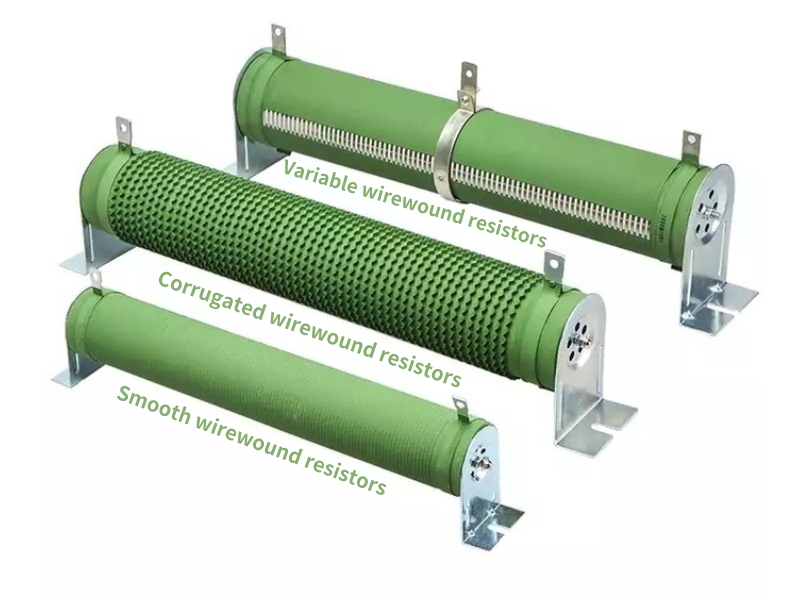

RX20 wire wound resistor is a commonly used wire wound resistor that comes in various types. According to the introduction in [1], wire wound resistors can generally be divided into fixed and adjustable types. Among them, the RX20 type belongs to fixed wire wound resistors. In addition, the RX20 type wire wound resistor can be divided into painted wire wound resistor and glazed wire wound resistor, with and without brackets, as well as adjustable resistor.

Painted wire wound resistors are coated with insulating paint on the surface of the resistance wire to improve its heat resistance and oxidation resistance. Glazed wire wound resistors are coated with glaze or other heat-resistant and heat dissipating insulation materials on the outer layer of the resistor to improve its power handling ability and stability.

Wirewound resistors with brackets refer to resistors with supporting components to support the resistance wire and improve its reliability. Wirewound resistors without brackets refer to resistors without supporting components. Adjustable resistors refer to resistors that can be adjusted by hand or power tools.

In summary, the RX20 type wire wound resistor is a commonly used fixed wire wound resistor that comes in various types, including painted wire wound resistors, glazed wire wound resistors, with and without brackets, as well as adjustable resistors

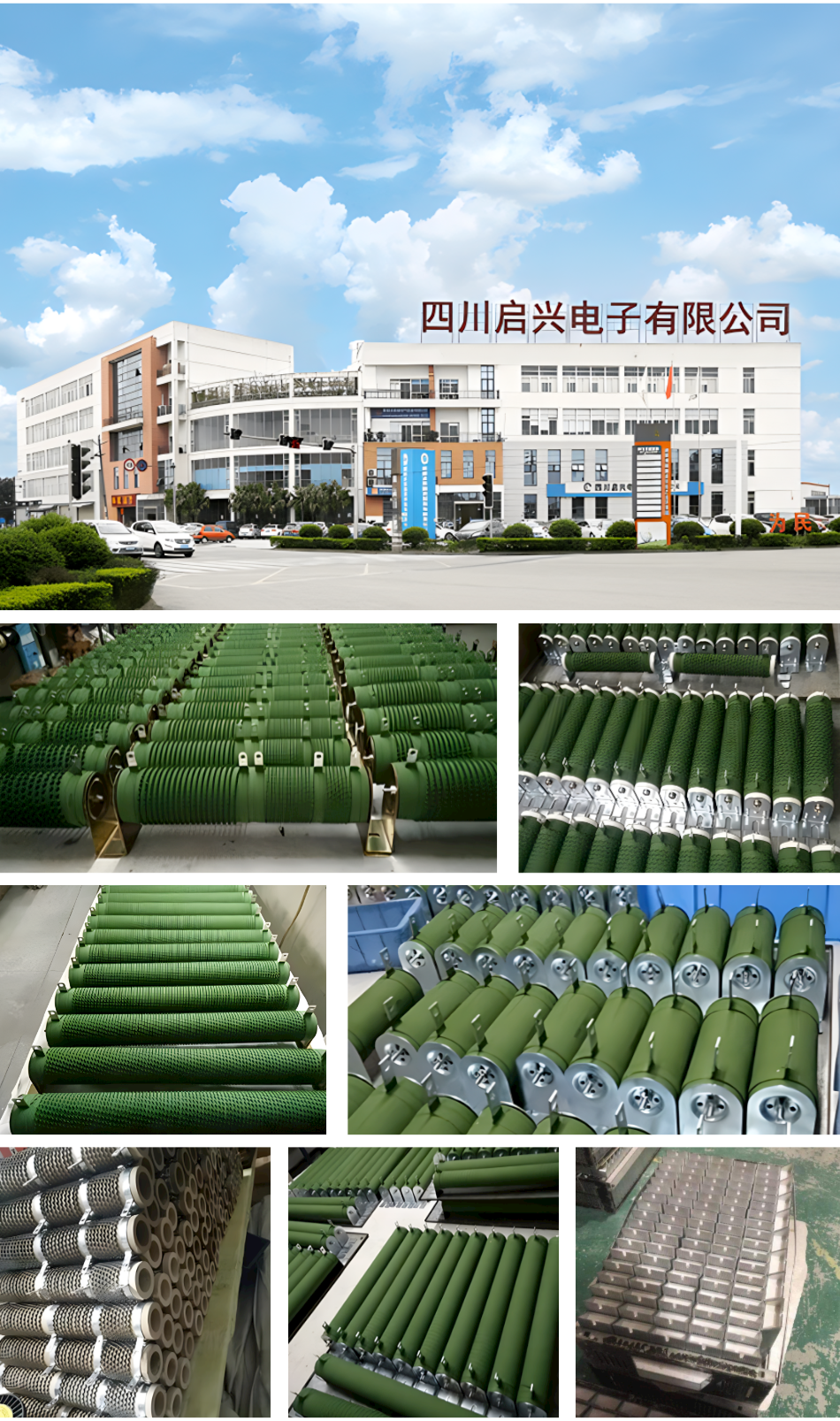

COMPANY PROFILE

Sichuan Qixing Electronics Co., Ltd. is a professional company engaged in the development, production, and sales of potentiometer, resistor, filter, potentiometer knob, band switch, and capacitor products. We were established in 2005 and have many years of production experience. Our company headquarters is located in Wenjiang District, Chengdu City, Sichuan Province, China.

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future

FAQ:

Q1. Can I order samples of LED lights?
A: Yes, we welcome ordering samples to test and inspect the quality. Mixed samples are acceptable.
Q2. What is the delivery cycle?
A: Sample preparation takes 3-5 days and mass production takes 8-10 working days.
Q3. Do you have a minimum order quantity limit for LED lights?
A: The minimum order quantity is low, and one sample can be provided for inspection.
Q4. How did you ship the goods and how long will it take to arrive?
A: Transport via DHL, UPS, FedEx, or TNT. It will take 3-5 days to arrive. Air and sea transportation are also optional.
Q5. How to process orders for LED lights?
A: First, let us know your request or application.Secondly, we will quote based on your requirements or our suggestions.Thirdly, the customer confirms the sample and deposits it as a formal order.Fourthly, we arrange production.
Q6. Can I print my logo on the LED product?
A: Yes. Please formally notify us before production.
Q7: Do you provide a guarantee for the product?
A: Yes, we offer a 5-year warranty for our products
