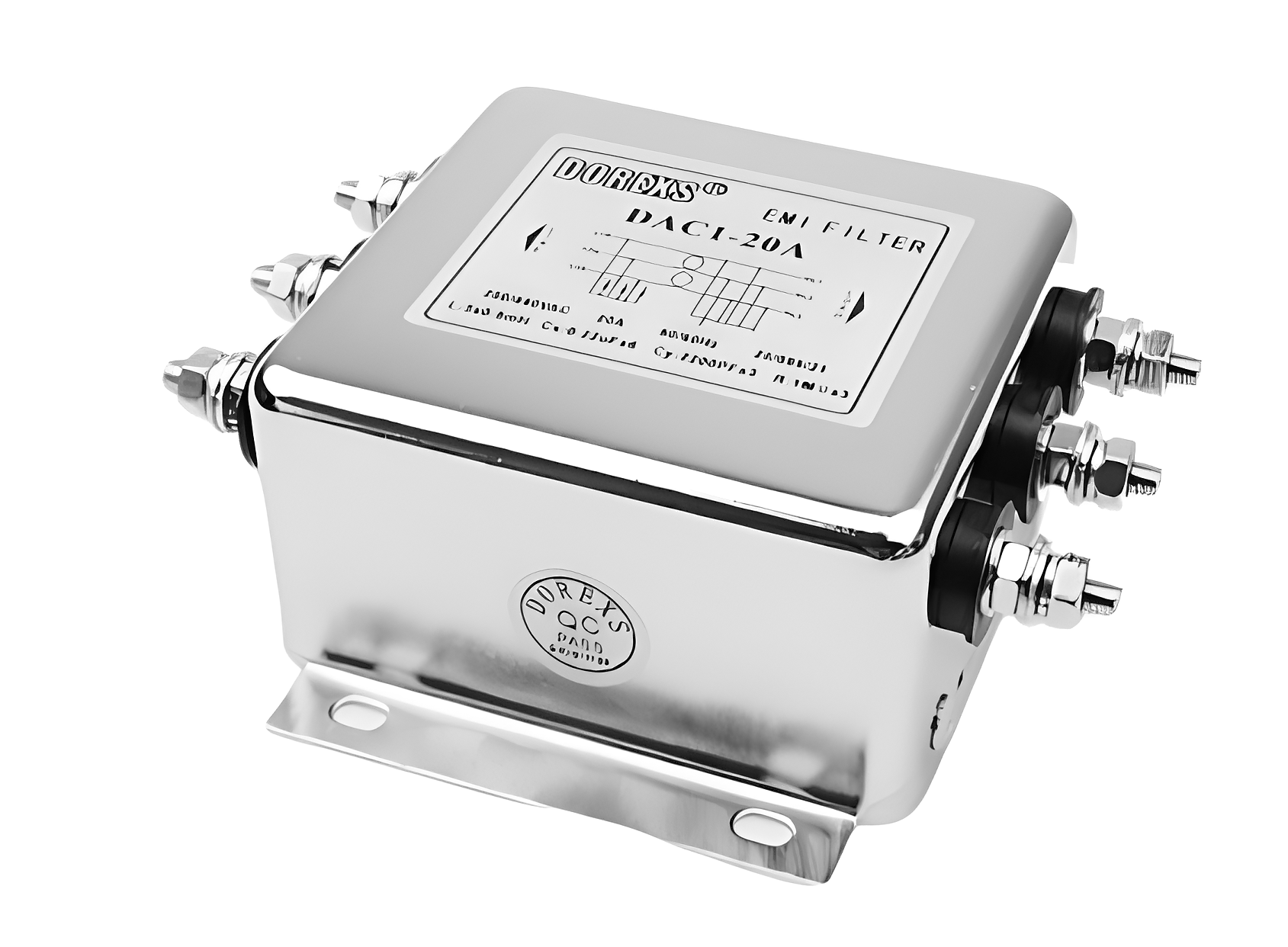

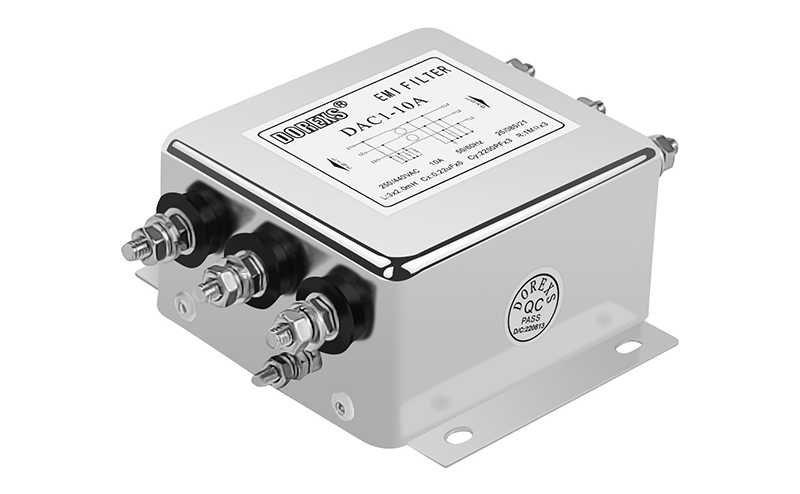

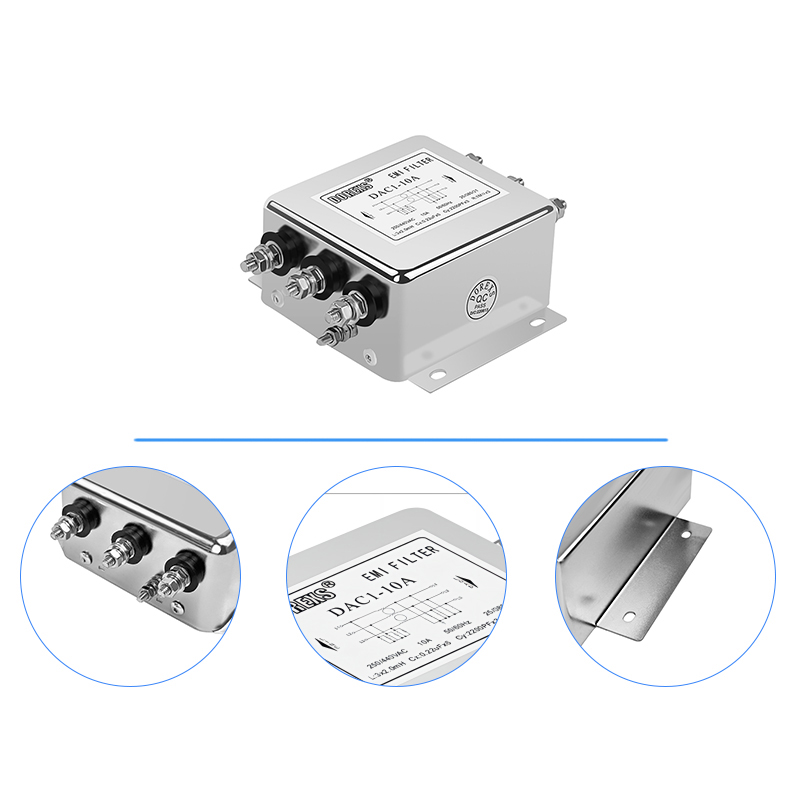

Three-phase power filter DAC1 Series Rated Current 6A-20A

product name:

Three-phase power filter DAC1 Series Rated Current 6A-20A

Product introduction:

This series of products produced by our company has the characteristics of standard filter circuit design, small size, low price, and good performance in solving 100Khz-30Mhz high-frequency interference. It has been widely used in various three-phase system switching power supplies, UPS and other power electronic equipment, distribution cabinets and other three-phase power electronic equipment and other complex electromagnetic interference environment equipment to ensure the normal and safe operation of these equipment and effectively reduce equipment failures. efficiency, reduce the interference of high-frequency signals to peripheral equipment and power grid, and protect your EMC service radiation testing.

PRODUCT FEATURES

■Three-phase AC 380VAC/440VAC power supply noise filter
■Rated current: 6A---20A
■Small size and low price
■Has good suppression effect on common mode and differential mode interference

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

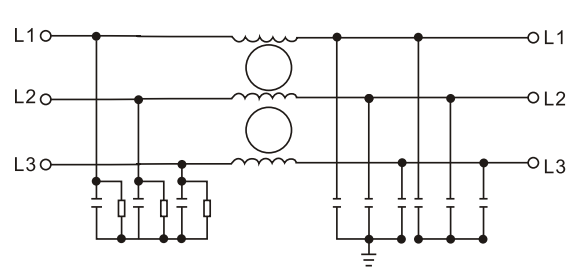

model	Rated current	leakage current	Product internal circuit diagram	Safety certification	Remark
DAC1-6A	6A	<2.0mA		CE,ROHS	Support parameter customization
DAC1-10A	10A	<2.0mA
DAC1-20A	20A	<3.0mA

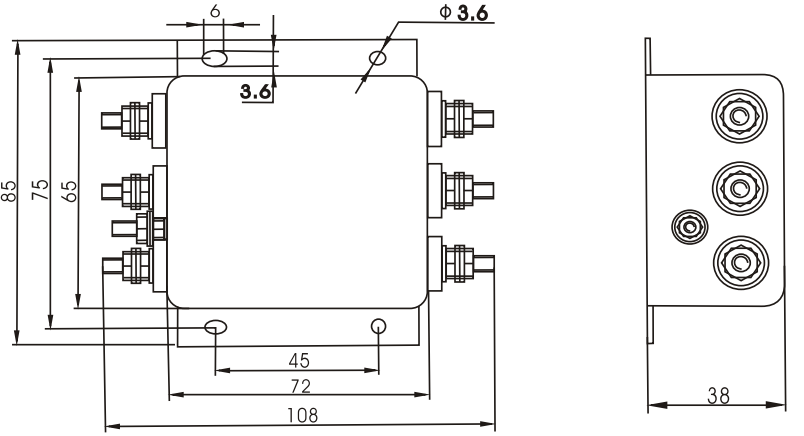

PRODUCT SIZE

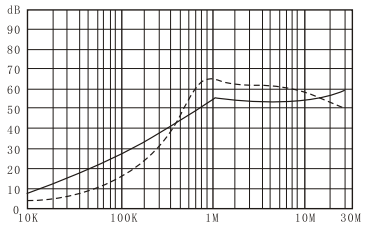

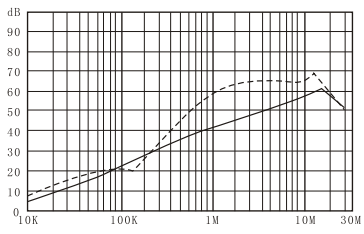

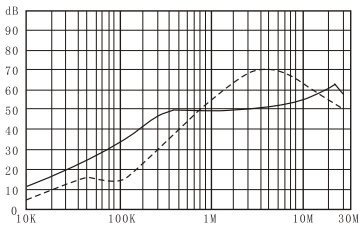

INSERTION LOSS

————共模(Common Mode)----------差模(Differential Mode)


                               DAC1-6A                                                                  DAC1-10A


                              DAC1-20A

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment
