Long Life Conductive Plastic Potentiometer 357 22E B202 1k 2K 5k 10k 360 Degree Turn
Category： Conductive plastic potentiometer
Product Details
product name:

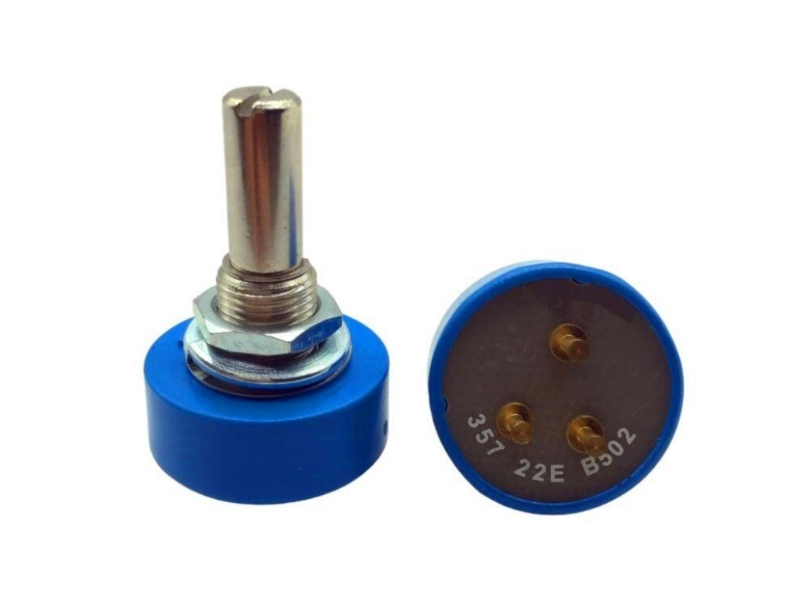

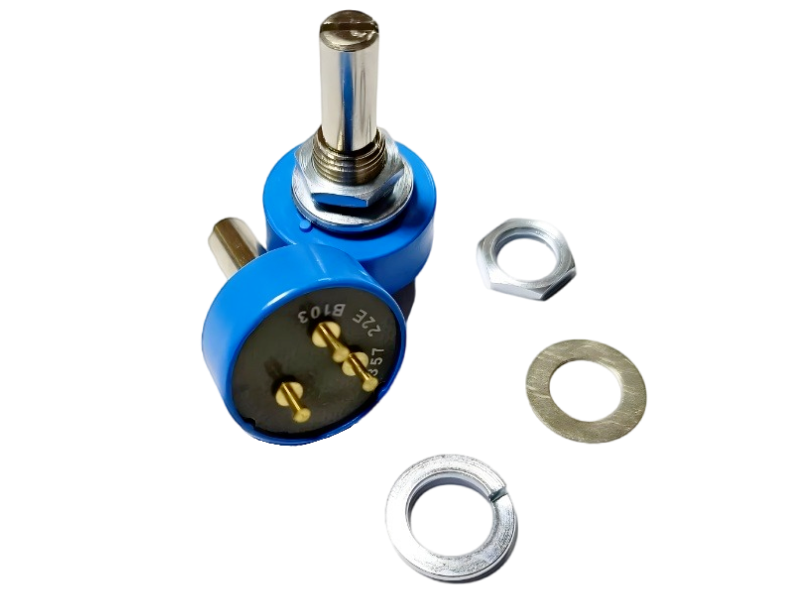

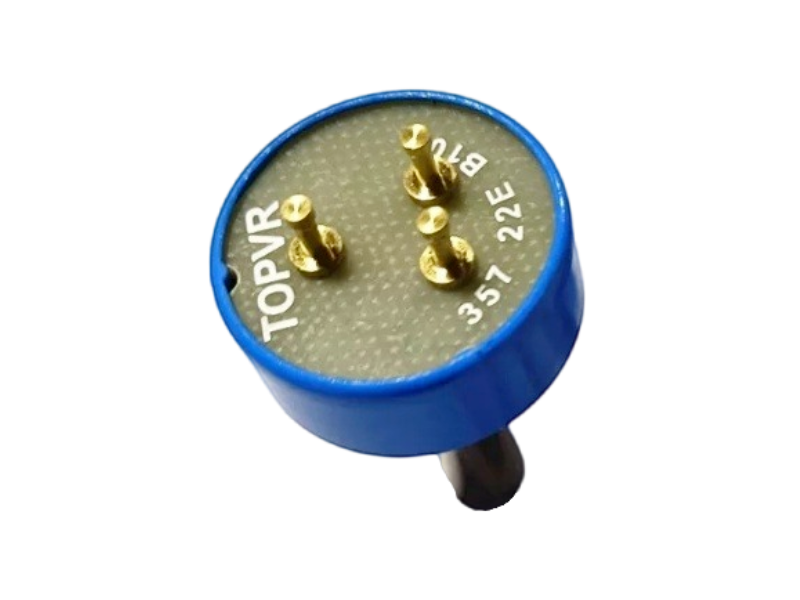

TOPVR potentiometer 357 22E B202 1k 2K 5k 10k 360 degree turn potentiometer infinite rotation
product description:
357 series single turn conductive plastic potentiometer, plastic casing, threaded part made of nickel plated copper, welding terminal 1/4 "stainless steel non magnetic shaft index insulation voltage: 1000 Vrms temperature coefficient: ± 600 ppm/° C output smoothness: 0.1% * large mechanical rotation angle: 360 ° continuous electrical rotation angle: 340 ° ± 3 °
Product Features:
Good temperature stability
Long rotating life
high-quality
Small structure

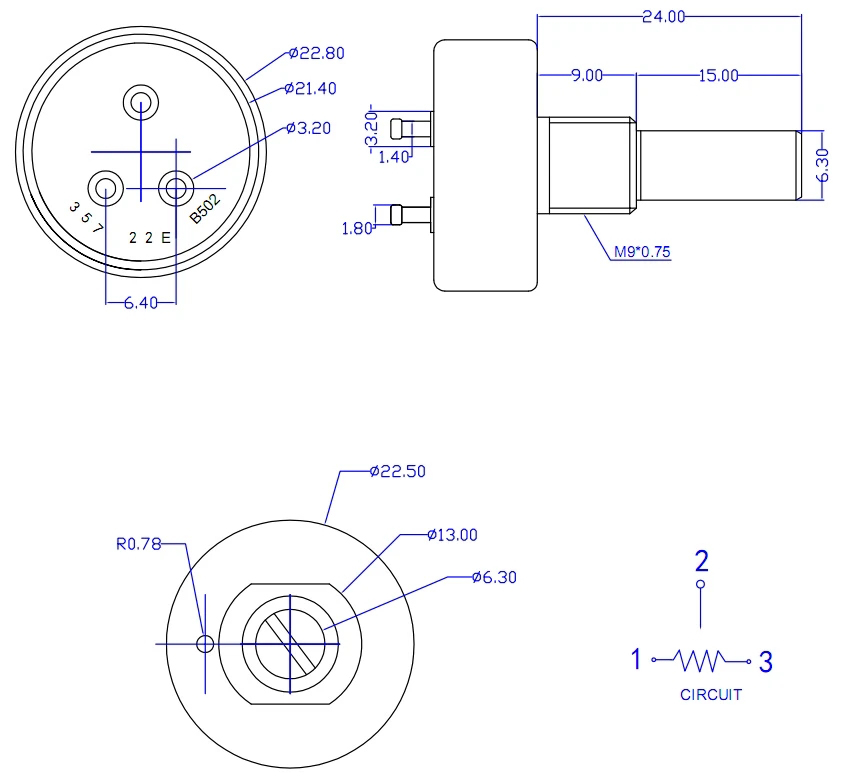

Product size:
Specification parameters:
|
item |
value |
|
Model Number |
357-22E |
|
Type |
long life Potentiometer |
|
Place of Origin |
China |
|
Brand Name |
BONENS |
|
Technology |
Conductive Plastic Potentiometer |
|
Resistance |
1KΩ~10KΩ |
|
Resistance Tolerance |
±10% |
|
Rated Power |
2W |
|
Operating Temperature |
-40℃--+125℃ |
|
Diameter |
22mm |
|
Rotation |
360° |
|
Resistive Material |
Conductive Plastic |
|
Termination Style |
PC Pin |
|
Bushing Thread |
M9 x 0.75 |
|
Shaft Size |
0.250" (6.35mm) |
|
Number of Turns |
1 |
|
Resistance type |
Linear |
|
Install |
Panel Mount |
|
Shaft diameter |
6.35mm |
|
Shaft length |
24mm |
|
Certification |
ROHS Complicant |
|
Service |
OEM |
application area:
Mainly supplied to: instruments and meters, precision mechanical equipment, welding equipment, audio equipment, automation equipment, communication, medical facilities, frequency converters, UPS power supply, etc
