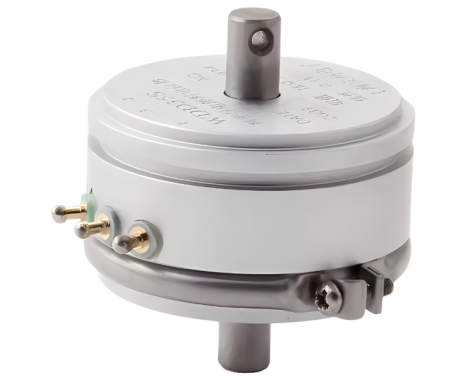

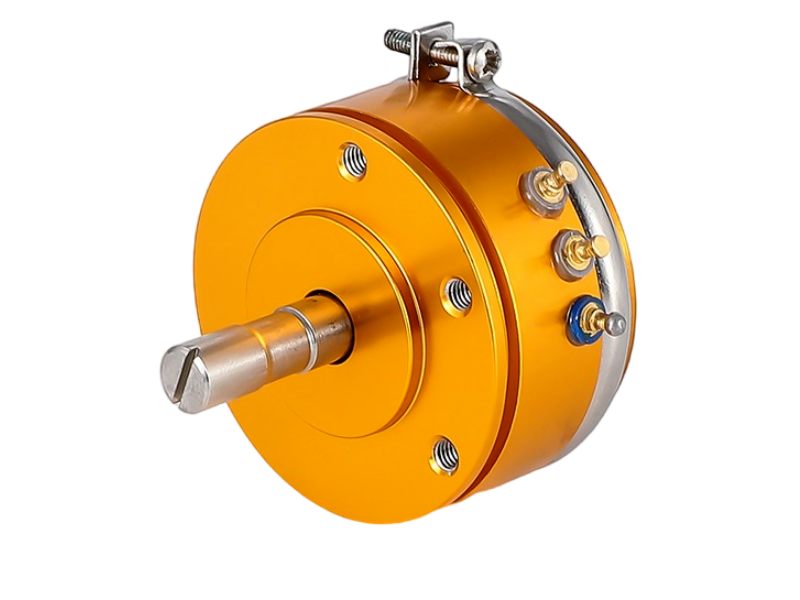

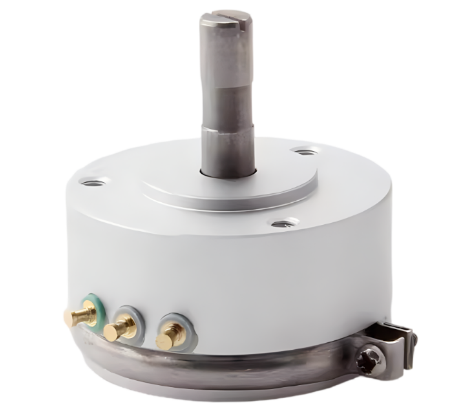

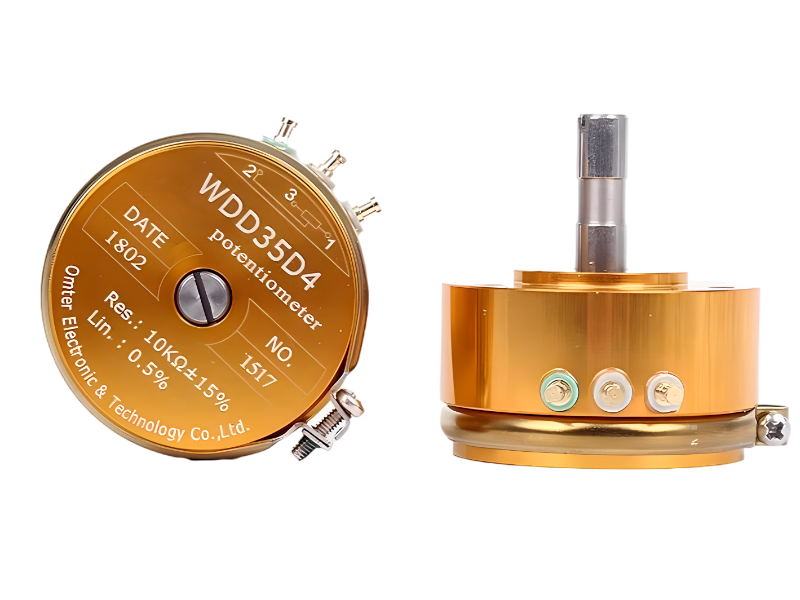

WDD35D4 1K 2K 5K Rotary Potentiometer Precision Conductive Plastic Potentiometer
Category： Conductive plastic potentiometer
Product Details
product name:
Precision conductive plastic potentiometer WDD35D4 1K 2K 5K 10 K linear 0.1% 0.5% angular displacement sensor
product description:
The WDD35 series products are made of hard aluminum alloy material as the outer shell, conductive plastic as the resistance material, and undergo molding and laser trimming fine adjustment. The precious metal brush surge device, stainless steel high-speed bearings and other components ensure the high quality and performance of the product, with excellent performance such as long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features:
The product adopts a hard anti-rust aluminum shell, a molded integrated conductive plastic matrix, and a stainless steel shaft matching high-speed bearing for precious metal brushes and current collector parts, which ensures that the product has excellent performance such as high linear accuracy, long mechanical life, high resolution and low dynamic noise

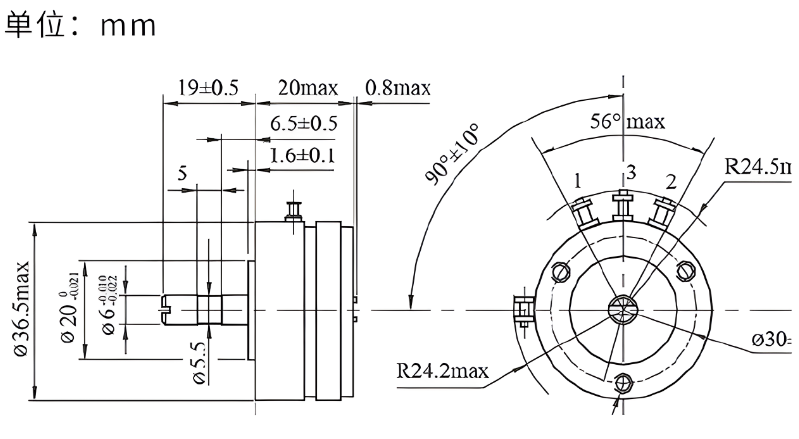

Product size:
Specification parameters:
|
item |
value |
|
Model Number |
WDD35D4 |
|
Type |
Precision Potentiometer |
|
Place of Origin |
China |
|
Brand Name |
shixin |
|
Technology |
conductive plastic |
|
Resistance |
1k 2k 5k 10k |
|
Resistance Tolerance |
±15% |
|
Rated Power |
2W |
|
Max. Operating Voltage |
500V |
|
Operating Temperature |
-55℃~+125℃ |
|
Brand |
Angle sensor |
|
Power (Watts) |
2W |
|
Tolerance |
±15% |
|
Adjustment Type |
Top |
|
Diameter |
36mm |
|
Package / Case |
metal |
|
Rotation |
360° continuous |
|
Resistive Material |
Conductive Plastic |
|
Termination Style |
PC Pin |
|
Actuator Type |
Knob |
|
Actuator Diameter |
0.248" (6.30mm) |
|
Shaft Size |
0.236" (6.00mm) |
|
Number of Turns |
1 |
application area:
WDD35D4 is suitable for network communication equipment, instrument equipment, industrial machinery equipment, medical equipment, injection molding machines, crane torque control, valves, pedal testing, robotic arms, pan tilt control, papermaking machinery, textile machinery

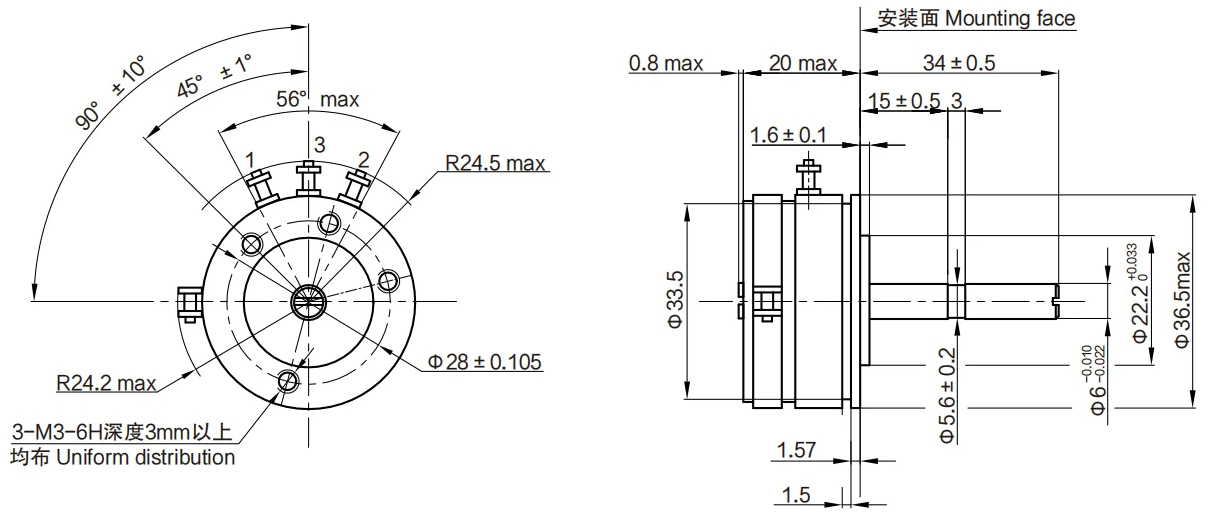

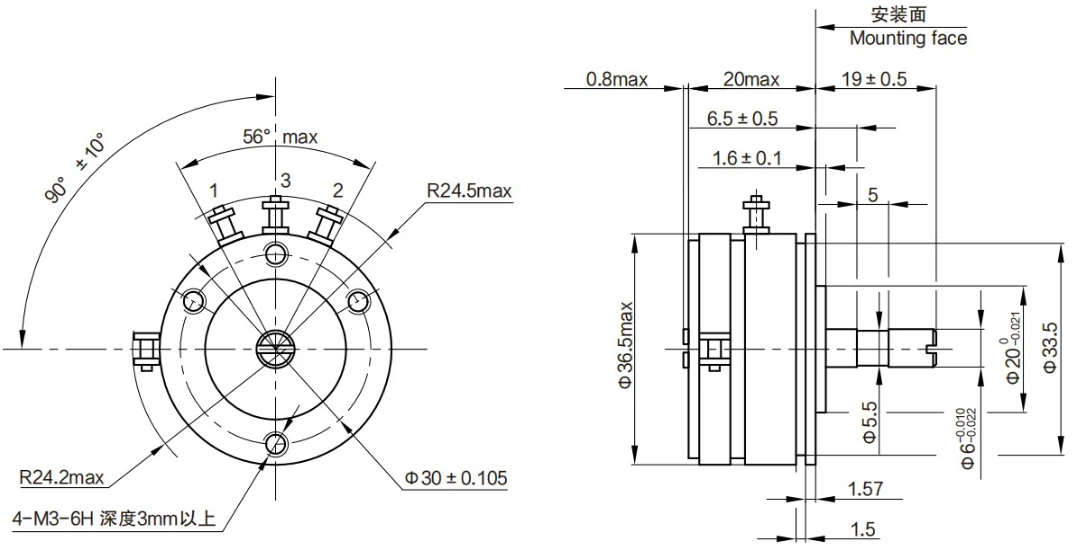

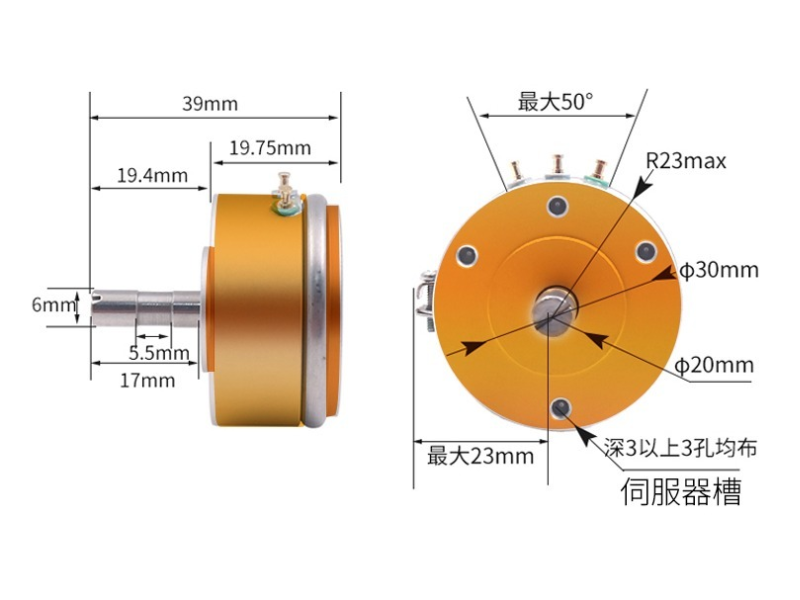

product catalog:
| WDD35D1 |  |
 |
|
| WDD35D8T |  |
 |
|
| WDD35S |  |
 |
|
| WDD35D4 |  |
 |
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
