BONENS IP67 Waterproof 10 Turn Precision Multi-turn Rotary Wirewound Potentiometer with Knob

BONENS IP67 Waterproof 10 Turn Precision Multi-turn Rotary Wirewound Potentiometer with Knob

Category： wirewound potentiometer

Product Inquiry

Product Details

3590 precision multi turn wire wound potentiometer 10K ohm

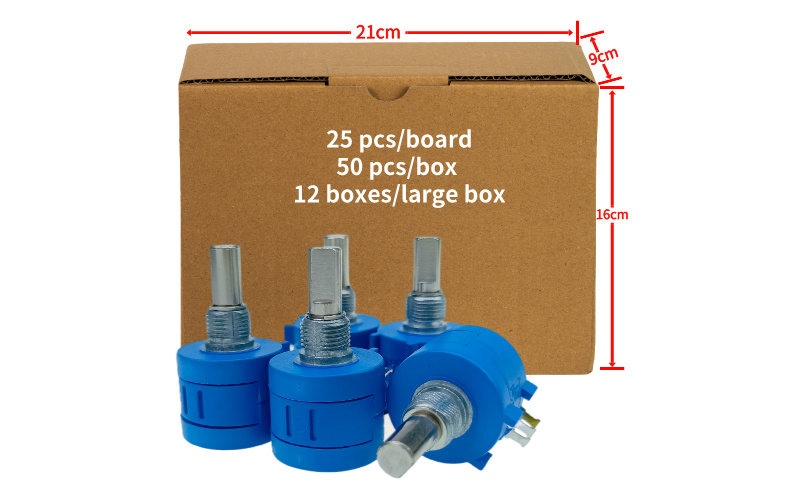

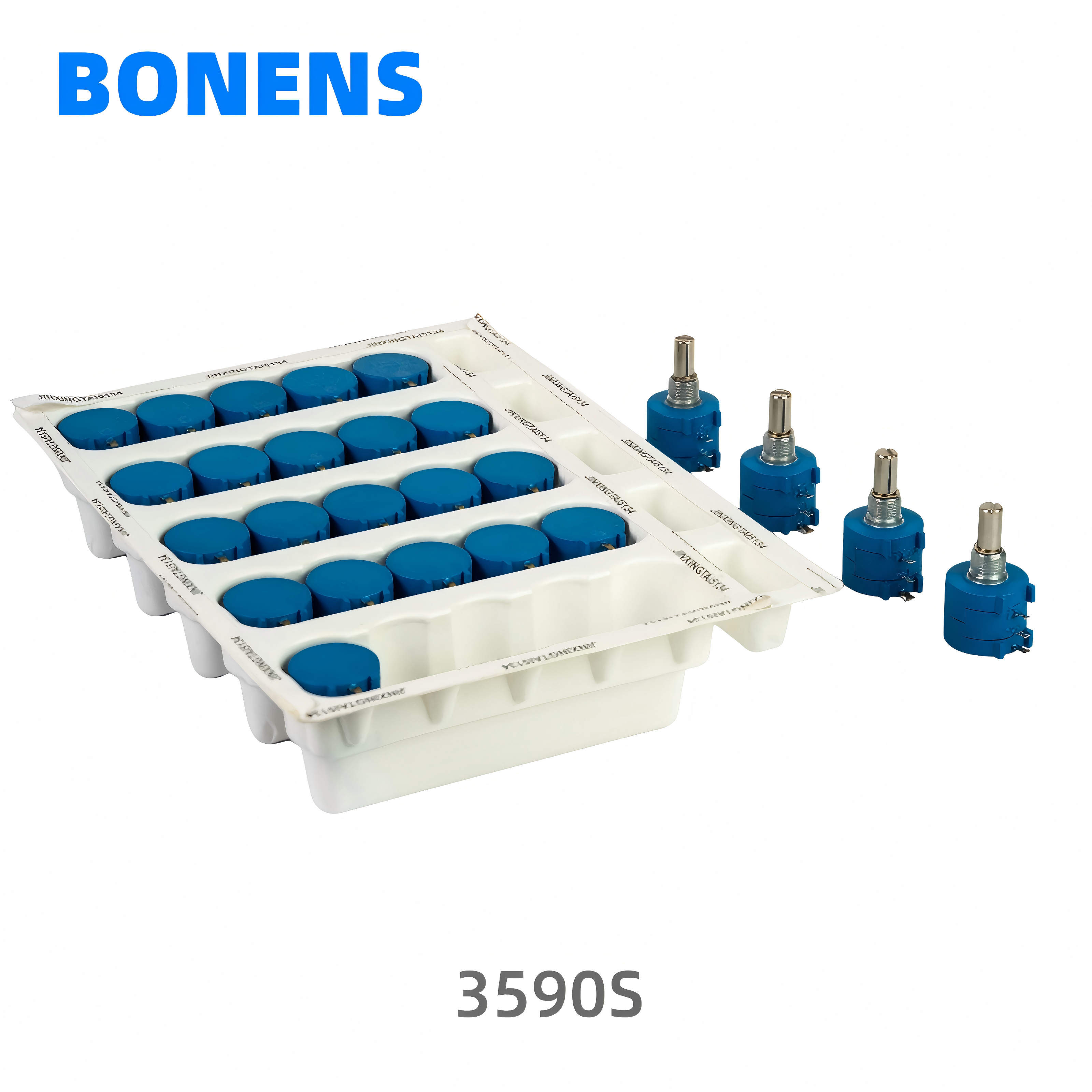

PRODUCT PACKAGING

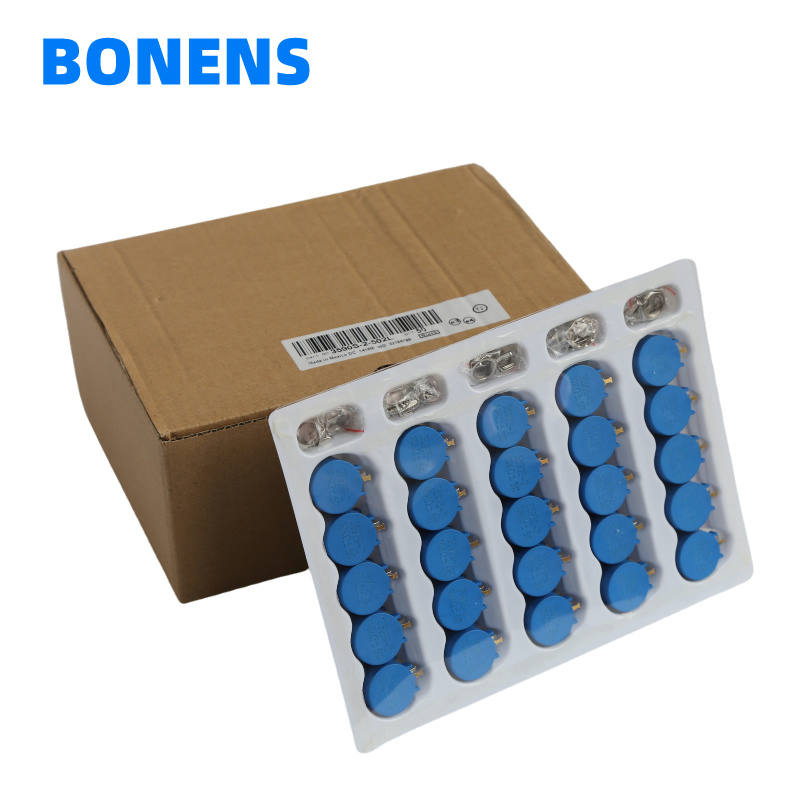

25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box

PRODUCT DESCRIPTION

Potentiometer type:Multi turn potentiometer
Potentiometer material:wire wound
model:3590S-2-103L
Resistance: 10K Ω
Permissible resistance range: ± 5%
Electrical rotation angle: 3600 ° ± 10 °(10 turn)
Rated power: 2W (70 ℃)
Temperature range: -55 ℃~+125 ℃

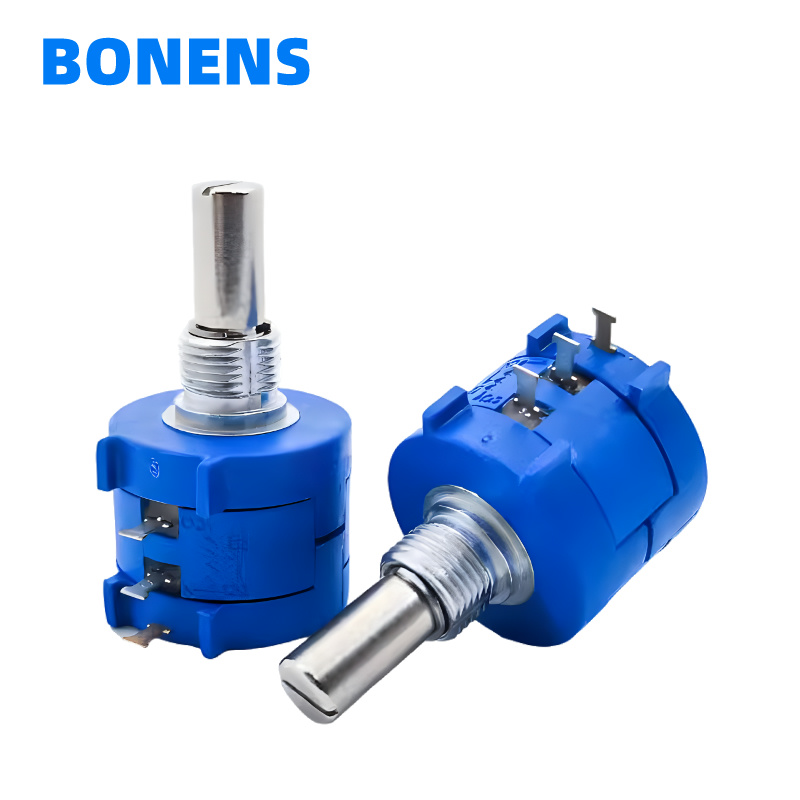

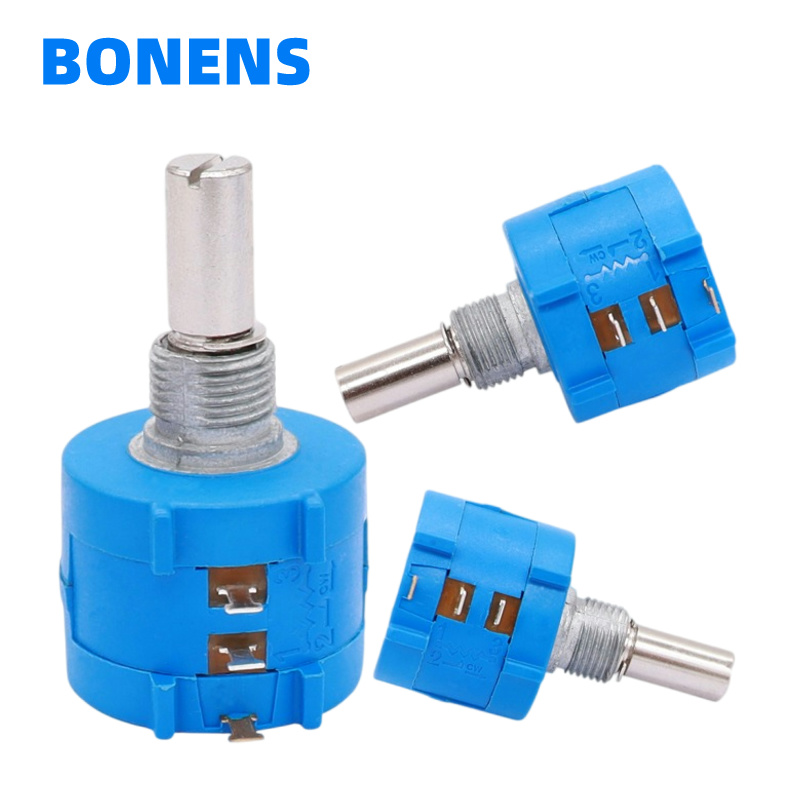

3590S wirewound potentiometer

Total mechanical stroke: 3600 ° ± 10 °(10 turn)

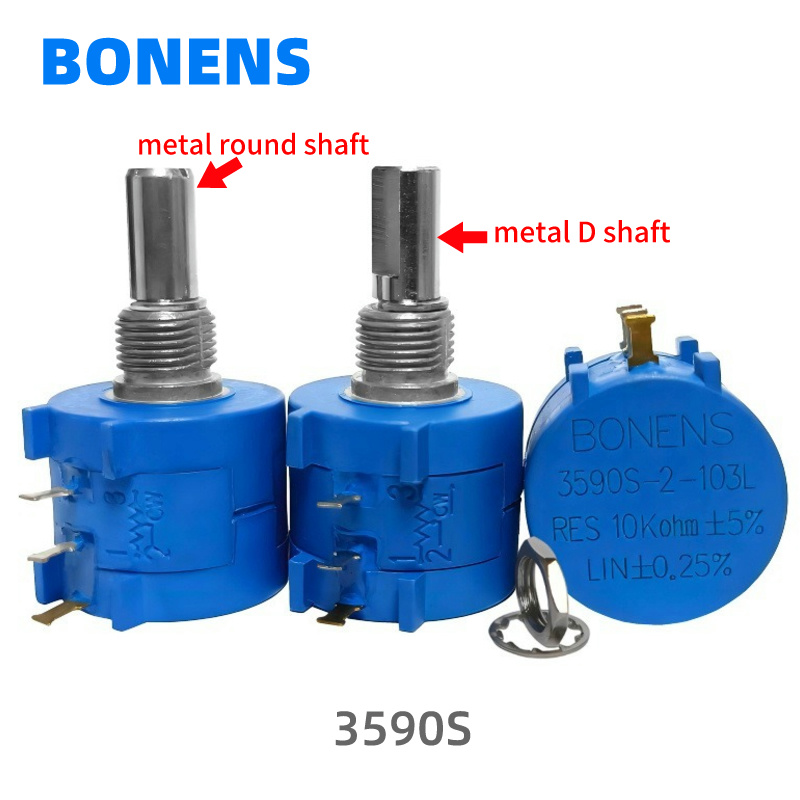

Shaft type:Circular shaft D shaft
shaft material: metal shaft

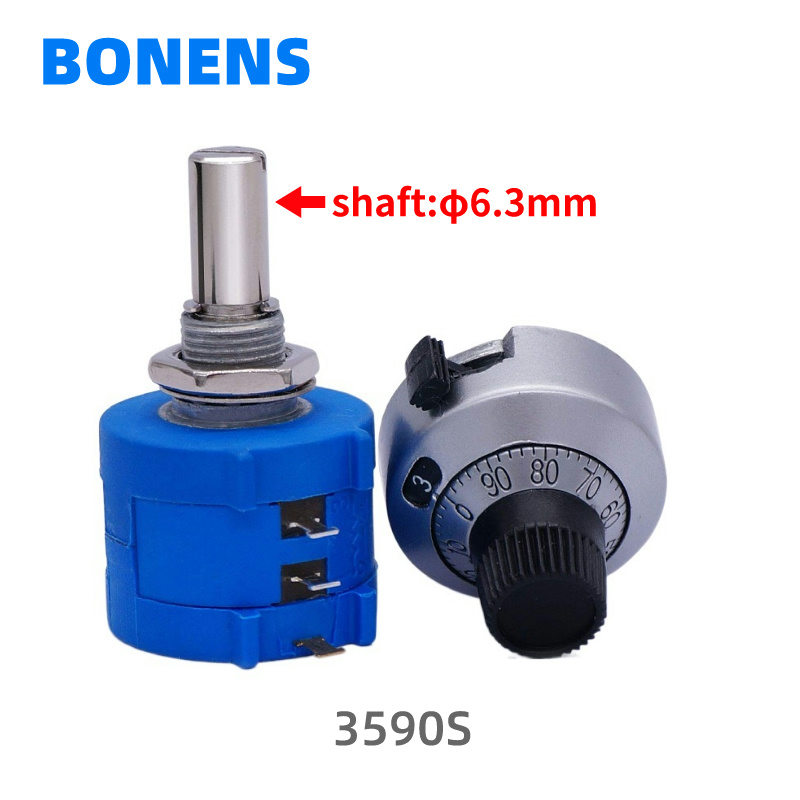

Shaft diameter: 6.3mm
shaft length:20mm
Resistance value variation mode: linear
Packaging: 25 pieces/board, 50 pieces/box,12 boxes/large box

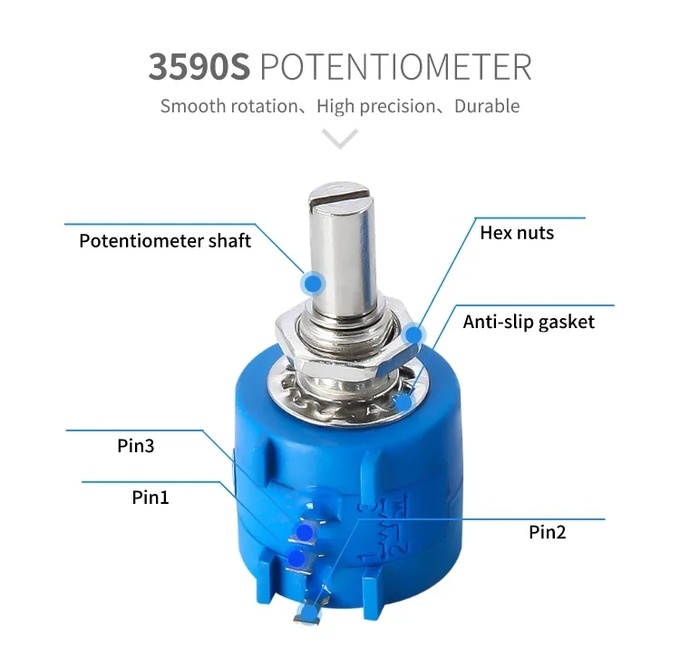

Accessories: 3590S potentiometer matching nut and washer

Product parameters

Characteristics	Range of nominal resistance	10K
	Resistance tolerance	±5%
	Terminal resistance	≤2%R or 5
	Peak noise	≤100
	Linear accuracy	±0.25%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200M
	Withstand voltage	500V (DC or AC peak value)
Environment Characteristics	Rated power	2W (70°C)
	Temperature range	-55°C~ 125°C
	TCR	±100x10-6/°C
	Temperature shock	R≤±3%R
	Collision (390m/S2, 4000 times)	R≤±1%R
	Moisture proof (GJB306A-96-Method106, not for 7a,7b inapplicability)	R≤±3%R, Insulation Resistance≥100M
	Vibration (10-500HZ, 0.75mm, 6h)	R≤±1%R, Electrical break≤100S
	Climate category(IEC68-2-2)	R≤±3%R,Insulation Resistance≥100M, Starting Torque≤20mN.m
	Operation at low temperature(-55°C, 4h)	R≤±3%R,Starting Torque≤20mN.m
	Rotational life(10000cscles)	R≤±3%R,peak noise≤500,Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	R≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	R≤±3%R, Insulation Resistance≥100M, Starting Torque≤20mN.m
Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m

Product size

Q1: How can I place order?

A: You can contact us by email about your order details, or place order on line.

Q2: How can I pay you?

A: After you confirm our PI, we will request you to pay. T/Tand Paypal, Western Union are the most usual ways we are using.

Q3:What’s the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an Pl for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare
the shipment for you.

Q4: How do you take care when your clients received defective products?

A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

Q5: How do you check all the goods in the production line?

A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
