3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn

3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn

Category： wirewound potentiometer

Precision multi-turn wire wound potentiometer 3540S: high-quality wire wound potentiometer, this product is mainly used in instruments, meters, post and telecommunications, power equipment, railway signals, aviation, aerospace and other fields.

Product Inquiry

Product Details

product name:

3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 0

product description:

Part Number	Resistance (Ω)	Resolution
3540S-1-201L	200	.042
3540S-1-501L	500	.031
3540S-1-102L	1,000	.027
3540S-1-202L	2,000	.021
3540S-1-502L	5,000	.021
3540S-1-103L	10,000	.019
3540S-1-203L	20,000	.014
3540S-1-503L	50,000	.011
3540S-1-104L	100,000	.008

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 1

Product Features:
1.Bushing mount
2.ROHS compliant
3.Optional center tap and rear shaft extension
4.Optional AR lug feature
5.Gangable with common or concentric shafts
6.High torque available
7.Non-standard features and specificationsavailable

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 2

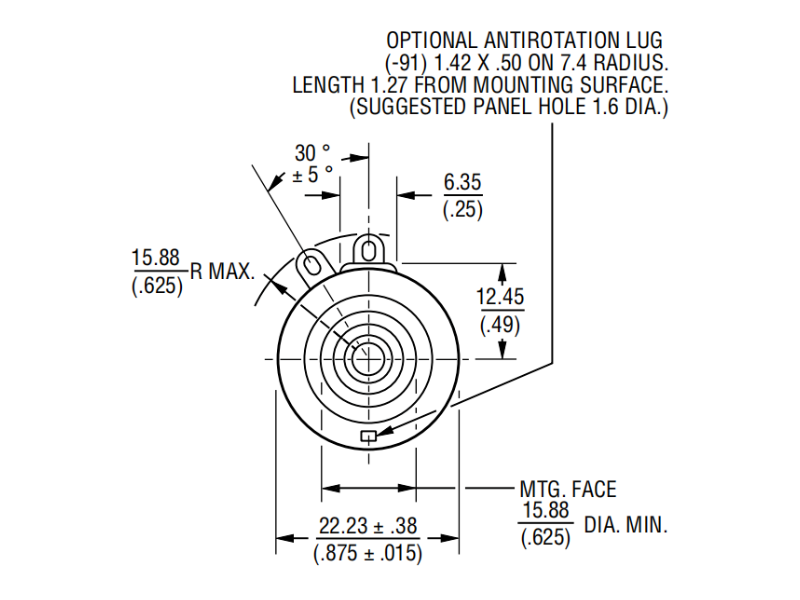

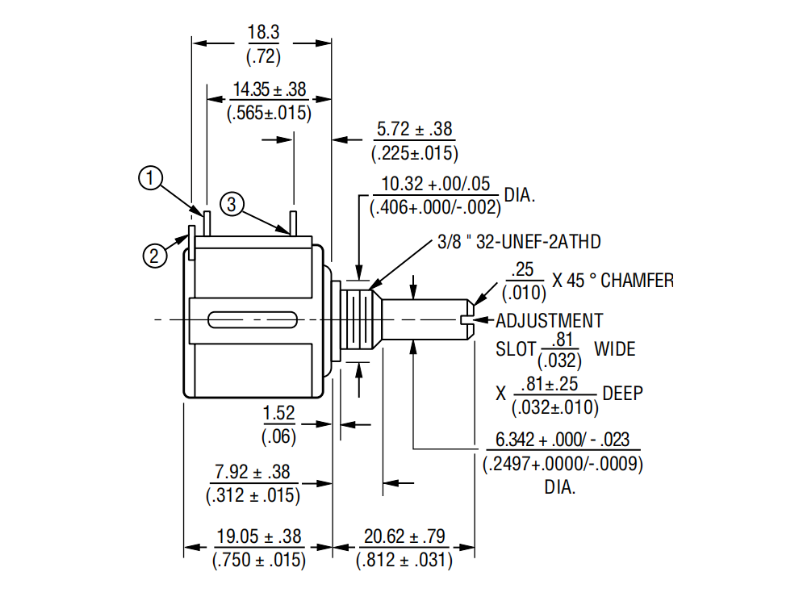

Product size:

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 3

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 4

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 5

Specification parameters:

Characteristics	Range of nominal resistance	100~100KΩ
	Resistance tolerance	±2%, ±5%
	Terminal resistance	≤2%R or 5Ω
	Peak noise	≤100Ω
	Linear accuracy	±1%, ±0.5%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200MΩ
	Withstand voltage	500V (DC or AC peak value)

Environment Characteristics	Rated power	2W (70°C)
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)	ΔR≤±3%R, Insulation Resistance≥100MΩ
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS
	Climate category(IEC68-2-2)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque≤20mN.m
	Operation at low temperature (-55°C, 4h)	ΔR≤±3%R, Starting Torque≤20mN.m
	Rotational life(10000cscles)	ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	ΔR≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m

Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 6

application area:

The 3540 series of multi-turn precision wire-wound potentiometers are mainly used in the fields of instruments, meters, post and telecommunications, electric power equipment, railway signals, aviation and aerospace, etc

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 7

product catalog:

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 8

Factory Display:

3540 Multi Turn Wirewound Precision Potentiometer 3540S-1-103L 10K Ohm 2w 10 Turn 10

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!

FAQ:

1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch

4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
